Script Examples¶

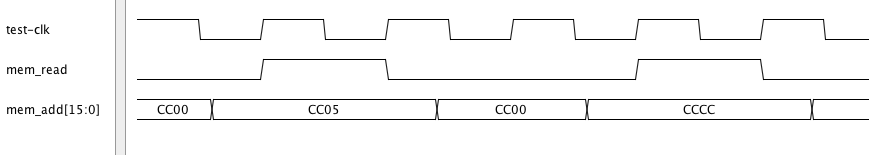

Drawing a Timing Diagram¶
The script draw_diagram.py is shown below
1from ta_py_lib.ta.app import *
2from ta_py_lib.td.logic import *
3from ta_py_lib.td.commands import *
4
5td = new_timing_diagram(taApp)
6start_script(td)
7
8dclock = add_digital_clock(td, "test-clk", "H", 20.0e6)
9dsignal = add_digital_signal(td, "mem_read", "L")
10dbus = add_digital_bus(td, "mem_add[15:0]", "CC00", "Hex")
11
12add_pulse(dsignal, 50.0, 100.0, "H")
13add_pulse(dbus, 30.0, 120.0, "CC05")
14
15add_edge(dsignal, 200.0, "H")
16add_edge(dsignal, 250.0, "L")
17
18add_edge(dbus, 180.0, "CCCC")
19add_edge(dbus, 270.0, "CD00")
20
21stop_script(td)

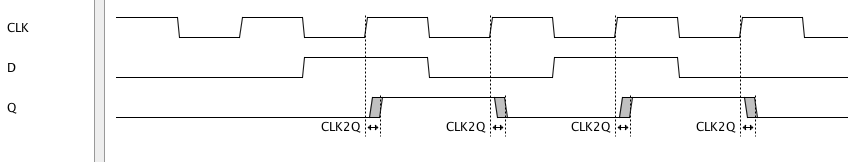

Creating a D Flip Flop¶
The script dff.py is shown below
1from ta_py_lib.ta.app import *
2from ta_py_lib.td.logic import *
3from ta_py_lib.td.commands import *
4
5td = new_timing_diagram(taApp)
6start_script(td)
7
8clk = add_digital_clock(td, "CLK","H",20.0e6)
9sigD = add_digital_signal(td, "D","L")
10sigQ = add_digital_signal(td, "Q","L")
11
12add_pulse(sigD, 75.0, 125.0, "H")
13add_edge(sigD, 175.0, "H")
14add_edge(sigD, 225.0, "L")
15
16dly_min = 2
17dly_typ = 4
18dly_max = 6
19clk2q_dly = add_part_delay(td, "CLK2Q", dly_min, dly_typ, dly_max, "DFF Clock to Q Output Delay")
20clk_edge_list = get_edge_list(clk)
21
22ls = "L"
23for clk_edge in clk_edge_list:
24 if get_next_state(clk_edge) == "H":
25 et = get_pt2_min(clk_edge)
26 ns = get_state_at_time(sigD, et)
27 #print "edge time %d next state %s" % (et,ns)
28 if ((ns != ls) and (et + dly_min > get_last_edge_pt2(sigQ))):
29 sigQ_edge = add_edge(sigQ, et, ns)
30 add_delay(td, clk2q_dly,clk_edge,sigQ_edge)
31 ls = ns
32
33stop_script(td)
Dumping Signal Values¶
The script dump_edges.py is shown below
1from org.dmad.ta import DigitalClock
2from ta_py_lib.ta.app import *
3from ta_py_lib.td.logic import *
4from ta_py_lib.td.commands import *
5from ta_py_lib.td.utils import *
6
7td = get_timing_diagram(taApp)
8start_script(td)
9
10out_file = set_output_file("dump_edges.txt")
11
12signal_list = get_signal_list(td)
13
14clock_signal = None
15for signal in signal_list:
16 if isinstance(signal, DigitalClock):
17 clock_signal = signal
18 else:
19 out_file.write("%s " % (get_name(signal)))
20
21out_file.write("\n")
22
23for clock_edge in get_edge_list(clock_signal):
24 if get_next_state(clock_edge) == "H":
25 edge_time = get_pt2_min(clock_edge)
26 for sig in signal_list:
27 if sig != clock_signal:
28 out_file.write("%s " % (get_state_at_time(sig, edge_time)))
29 out_file.write("\n")
30
31out_file.close()
32
33stop_script(td)
An example output from dump_edges.py
1D Q D_diff mem_read mem_add[15:0]
2H L L H L CC00
3H L L H H CC05
4H H L L L CC05
5H L H H L CC00
6H H L L H CCCC
7H L H H L CCCC
8H L L H L CD00
Generating VHDL Test Vectors¶
The script vhdl_test_vectors.py is shown below
1from org.dmad.ta import DigitalSignal
2from org.dmad.ta import DigitalBus
3from org.dmad.ta import DigitalClock
4
5from ta_py_lib.ta.app import *
6from ta_py_lib.td.logic import *
7from ta_py_lib.td.commands import *
8from ta_py_lib.td.utils import *
9
10out_file = set_output_file("vhdl_test_vectors.txt")
11td = get_timing_diagram(taApp)
12
13start_script(td)
14
15ts = get_time_scale(td)
16ts_text = get_time_scale_text(ts)
17signals = get_signal_list(td)
18
19for sig in signals:
20 i = 0
21
22 out_file.write("%s <= " % (get_name(sig)))
23
24 for edge in get_edge_list(sig):
25 if isinstance(sig, DigitalSignal) or isinstance(sig, DigitalClock):
26 line = "'%s'" % (get_next_state(edge))
27 if i != 0:
28 line = " %s after %s %s" % (line, edge.getPt2Min() / 1000, ts_text)
29 elif isinstance(sig, DigitalBus):
30 state_format = {
31 "Hex": "X\"",
32 "Bin": "\""
33 }
34
35 sStart = state_format[get_state_format(sig)]
36
37 line = "%s%s\"" % (sStart, get_next_state(edge))
38 if i != 0:
39 line = " %s after %s %s" % (line, edge.getPt2Min() / 1000, ts_text)
40
41 if ( i == len(get_edge_list(sig))-1):
42 out_file.write("%s;\n\n" % (line))
43 else:
44 out_file.write("%s,\n" % (line))
45
46 i += 1
47out_file.close()
48stop_script(td)
An example output from vhdl_test_vectors.py
1ADD[15:0] <= X"Z",
2 X"FFC0" after 27.0 ns,
3 X"Z" after 82.0 ns,
4 X"DC00" after 1027.0 ns,
5 X"Z" after 1082.0 ns;
6
7CS <= 'H',
8 'L' after 34.0 ns,
9 'H' after 82.0 ns,
10 'L' after 1034.0 ns,
11 'H' after 1082.0 ns;
12
13DATA[7:0] <= X"Z",
14 X"55" after 49.0 ns,
15 X"Z" after 82.0 ns,
16 X"AA" after 1041.0 ns,
17 X"Z" after 1082.0 ns;
Generating SPICE PWL Test Vectors¶
The script spice_pwl_test_vectors.py is shown below
1from org.dmad.ta import DigitalBus
2from ta_py_lib.ta.app import *
3from ta_py_lib.td.logic import *
4from ta_py_lib.td.commands import *
5from ta_py_lib.td.utils import *
6
7td = get_timing_diagram(taApp)
8start_script(td)
9
10ts = get_time_scale(td)
11out_file = set_output_file('spice_pwl_test_vectors_py.txt')
12
13sig_list = get_signal_list(td)
14for sig in sig_list:
15 if not isinstance(sig, DigitalBus):
16 out_file.write("%s N1 N2 PWL (\n" % (get_name(sig)))
17 out_file.write(" 0.0 %s\n" % (get_voltage(get_start_state(sig))))
18
19 ed_list = get_edge_list(sig)
20 i = 0
21 for ed in ed_list:
22 if i > 0:
23 ls_voltage = get_voltage(get_last_state(ed))
24 ns_voltage = get_voltage(get_next_state(ed))
25 out_file.write(" %f%s %s\n" % (get_pt1_min(ed) / 1000.0, get_ts_text(ts), ls_voltage))
26 out_file.write(" %f%s %s\n" % (get_pt3_min(ed) / 1000.0, get_ts_text(ts), ns_voltage))
27 i += 1
28 out_file.write(" %f%s %s\n" % (get_end_time(td), get_ts_text(ts), ns_voltage))
29 out_file.write(" )\n")
30 else:
31 num_bits = get_num_bits(sig)
32 state_format = get_state_format(sig)
33
34 ls_bit = get_ls_bit(get_name(sig))
35 ms_bit = get_ms_bit(get_name(sig))
36
37 for i in range(ls_bit,ms_bit+1):
38 start_state = get_start_state(sig);
39 if (state_format != "Bin"):
40 start_state = convert_format(start_state,state_format,"Bin",num_bits)
41
42 bus_name = get_name(sig)
43 bus_name = bus_name[0:bus_name.find("[")]
44 out_file.write("%s[%d] N1 N2 PWL (\n" % (bus_name,i))
45
46 if (start_state == "Z"):
47 ss_voltage = get_voltage("Z")
48 else:
49 ss_voltage = get_voltage(start_state[i])
50
51 out_file.write(" 0.0 %s\n" % (ss_voltage))
52
53 ed_list = get_edge_list(sig)
54 j = 0
55 for ed in ed_list:
56 if (j > 0):
57 last_state = get_last_state(ed)
58 if (state_format != "Bin"):
59 last_state = convert_format(last_state,state_format,"Bin",num_bits)
60 if (last_state == "Z"):
61 ls_voltage = get_voltage("Z")
62 else:
63 ls_voltage = get_voltage(last_state[ms_bit-i])
64
65 next_state = get_next_state(ed)
66 if (state_format != "Bin"):
67 next_state = convert_format(next_state,state_format,"Bin",num_bits)
68 if (next_state == "Z"):
69 ns_voltage = get_voltage("Z")
70 else:
71 ns_voltage = get_voltage(next_state[ms_bit-i])
72
73 out_file.write(" %f%s %s\n" % (get_pt1_min(ed) / 1000, get_ts_text(ts), ls_voltage))
74 out_file.write(" %f%s %s\n" % (get_pt3_min(ed) / 1000, get_ts_text(ts), ns_voltage))
75 j += 1
76 end_voltage = ns_voltage
77 out_file.write(" %f%s %s\n" % (get_end_time(td), get_ts_text(ts), end_voltage))
78 out_file.write(" )\n")
79
80out_file.close()
81stop_script(td)
An example output from spice_pwl_test_vectors.py
1ADD[1] N1 N2 PWL (
2 0.0 2.5
3 26.500000e-9 2.5
4 27.500000e-9 0.0
5 81.500000e-9 0.0
6 82.500000e-9 2.5
7 1026.500000e-9 2.5
8 1027.500000e-9 0.0
9 1081.500000e-9 0.0
10 1082.500000e-9 2.5
11 1120.000000e-9 2.5
12 )
13ADD[2] N1 N2 PWL (
14 0.0 2.5
15 26.500000e-9 2.5
16 27.500000e-9 0.0
17 81.500000e-9 0.0
18 82.500000e-9 2.5
19 1026.500000e-9 2.5
20 1027.500000e-9 0.0
21 1081.500000e-9 0.0
22 1082.500000e-9 2.5
23 1120.000000e-9 2.5
24 )
25ADD[3] N1 N2 PWL (
26 0.0 2.5
27 26.500000e-9 2.5
28 27.500000e-9 0.0
29 81.500000e-9 0.0
30 82.500000e-9 2.5
31 1026.500000e-9 2.5
32 1027.500000e-9 0.0
33 1081.500000e-9 0.0
34 1082.500000e-9 2.5
35 1120.000000e-9 2.5
36 )
